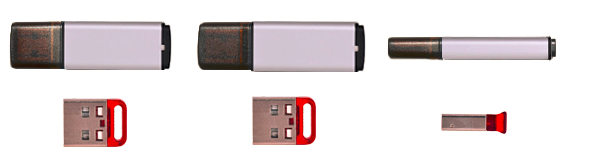

mLock X3 dongle is a kind of cross-platform programmable smart card chip based dongle supporting multiple CPU architecture such as ARM and X86 and various OSs like ARM, Linux, Win CE, and Win 8. The customizable firmware chip-level protection scheme makes this dongle more suitable for complex software solution.
◆ Driveless USB interface
◆ The world's only 32-bit hardware serial number
◆ High-strength smart card security chip based on 32-bit ARM core
◆ Efficient, powerful and stable programmable functions
◆ Humanized encryption lock engineering management tools and testing tools
◆ Safe and reliable B/S genuine authentication, secure login and remote upgrade*
◆ Time-chain anti-tracking to protect the algorithm logic in the lock
◆ Built-in large-capacity secure data file system and executable file system
◆ Management and production of encrypted locks in engineering synchronization mode
◆ Support double-precision floating-point operations, 64-bit data types
◆ The hardware supports a variety of security algorithms, and the key and the operation process are never locked
◆ Supports background execution of executable files at regular intervals, which can be executed when powered on*
◆ Specially optimized for game software, complex computing and other software
Chip Security Level | Smart Card Security Chip |
Storage | 4K-24K data area, 8K-64K programming area* |
Rewritable times | Write 100,000 times, read unlimited |
| Shared buffer | 2K |
Data retention time | 10 years |
Built-in security algorithm | 3DES、RSA、SHA1… |
Communication | Built-in hardware encryption, random interference encryption protocol |
Power | Max 100MW |
Working Temperature | 0-50 ℃ |
| Storage temperature | -20-70℃ |
Interface Type | USB ( 2.0 ,Compatible with 1.1, 3.0 standards ) |
Anti-brute force cracking device | If the error is detected 3 times, the dongle will enter the automatic protection state |
Product Size | 55mm*17mm*7mm/18mm*15mm*7mm |
Product Weight | 8g /2.3g |
Casing Material | Metal |
Casing Color | Muti-color optional |
Warranty | 1 year free warranty |
Windows XP/2003/Vista/Windows 7/Windows 2008/Windows 8/Windows 2012;
Rich software interface: Delphi, Java, PB, VB, VC, VS.NET, etc.
Scope of application: It is suitable for users who have software encryption requirements and can quickly integrate with software and require large storage capacity.
